Draw Piping Isometrics and Manage Fabrication

Draft spools faster, use inventory more efficiently, plan your NDE logically

Order NowContact Us

Features

Order SpoolFab

Draw Piping Isometrics

Quickly produce installation isometrics and fabrication spool drawings. Work from hand sketches or just draw them directly.

Auto-Generate Bill of Materials

As you draw, the BOM generates and updates itself automatically.

Track Spools

You can assign welding lots and output to a variety of cutting machines.

Import IDF and PCF Files

You can start by importing IDFs & PCFs to  utilize SpoolFab's features.

Learn More ➔

Draw Bio-Pharmaceutical Fittings

Used in vaccine plants, food plants and more, Bio-Pharm is now in Beta.

New in SpoolFab 10

Dark Mode

Reduce eye strain during prolonged work with a chalkboard appearance.

New in SpoolFab 10

Piping Isometrics Drawing and Fabrication Management Software

Start with IDF or PCF files, installation drawings, or draw spools directly. The creation of piping spools enables you to record heat numbers and release drawings to fabrication. Record weld details, non-destructive evaluations and generate reports.

Draw Piping Isometrics Efficiently

Create isometric drawings in minutes:
3 clicks to draw a pipe, 3 clicks to add an elbow, 1 click to add a dimension and 3 clicks to print.

Easy isometric interface
Import IDF or PCF files
Allows for flexible drawing

Track Spools

SpoolFab's inventory system enables the automatic inventorying and subsequent generation of reports such as:
- Job Status Reports
- Material Reports
- Field, Tack and Shop Weld Reports
- And More...

Assign Welding Lots
Output to Cutting Machines
Order NowContact Us

Multi-Industry Application

SpoolFab supports a collection of common carbon steel, stainless steel, and MaxPure BPE Fittings and allows for the addition of your own specifications.

Bio-Pharm Piping

Draw ferrules, tees, elbows and valves with clamps on the clamped ends.

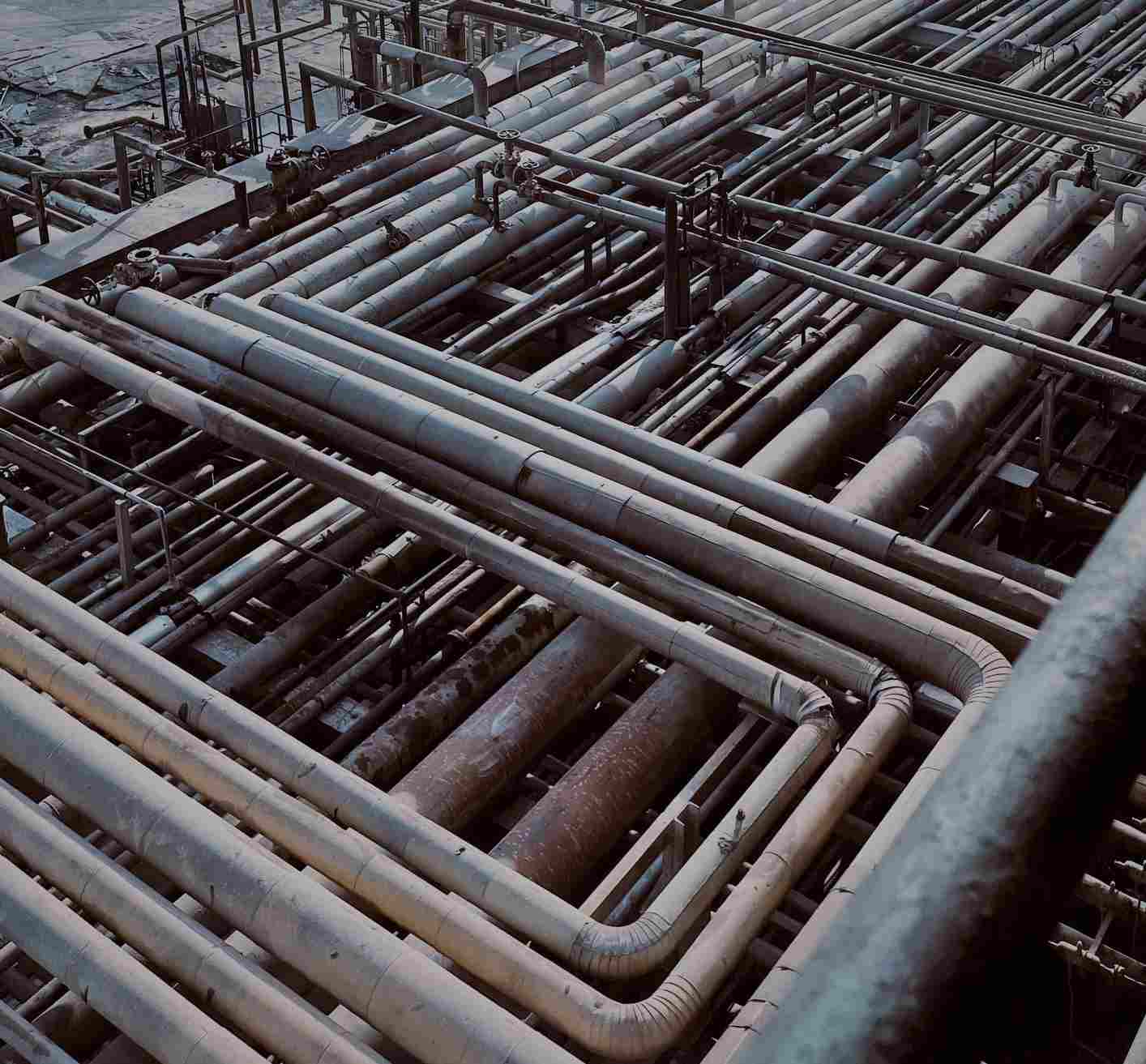

Carbon Steel Piping

Draw carbon steel piping and fittings.

Stainless Piping

Draw stainless steel piping and fittings.

Order NowContact Us

Getting Started Documentation

Order SpoolFabBrowse Articles

SpoolFab Basics

K0000

See a chart showing the main functions of SpoolFab, followed by a guide for new users.

Installing SpoolFab

K0001

Get up and running by installing SpoolFab on your Windows machine.

How to Set Up a New Client, Job And Spec

K0002

Create a new Client, Job, and Spec which is necessary when beginning a project.

Drawing Quick Start with Video

K0004

Get started by drawing some fundamentals: pipes, elbows, tees, and dimensions.

Setting up the Title Block

K0006

Brand images and print-outs of your drawings by setting up a custom title block.

Keystroke / Keyboard Shortcut Guide

K0007

Use keyboard shortcuts to reduce the time it takes to draw and operate SpoolFab.

How To Order More Drawings

K0009

Order more drawings via our online ordering system or by sending in an email.

Pre-Assigning Heat Numbers

K0015

Add heat numbers before or after fabrication. Enter one by one or assign automatically based on inventory.

How to Assign Welding Lot Numbers

K0022

Assign welding lots and select welds for RT (X-Ray) testing.

Selecting Items Already Drawn

K0031

Select items you have drawn to delete or move one or more at a time.

Introduction to Material Control

K0037

Sort and select from the list of drawings or use the entire list. Generate a material summary, material search, item report, cut sheets, or a consolidated report in excel.

SpoolFab on a Laptop

K0056

New in SpoolFab 10

Bio-Pharm Fittings

SpoolFab 10 Beta supports drawing BPE piping & fittings with clamped ends.

See it in Action ➔

Scroll Wheel Zooming

Zoom smoothly with your scroll wheel instead of a context menu.

What is the SpoolFab 10 Beta ➔

Dark Mode

A modern, comfortable appearance resembling a chalkboard.

What is the SpoolFab 10 Beta➔
